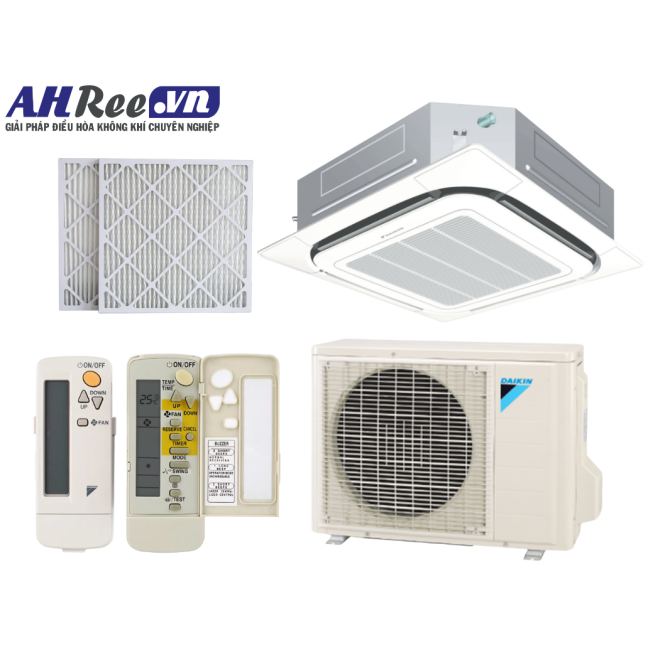

Ceiling mounted cassette Daikin - Non-inverter 2HP - FCNQ18MV1/RNQ18MV19

ITEMS

FUNCTIONS

DESCRIPTIONS

1

Fine square panels

Panel size is same for all models, FCNQ13-48M.

It is easy to maintain a neat appearance when multiple units are installed.

2

Swing pattern selection

Optimal comfort and convenience assured by 2 air discharge modes

3

Switchable fan speed

(2 step)

Switchable fan speed: High/Low

High setting provides maximum reach while low

setting minimises drafts.

4

Programme "Dry"

Dehumidification is microprocessor controlled to prevent abrupt and uncomfortable changes in air temperature.

5

Suitable for high ceilings

Even in spaces with high ceilings, a comfortable airflow is carried down to the floor level.

6

Two selectable temperature-sensors

Both indoor unit and wired remote controller (option) contain temperature- sensors. Temperature sensing can be set at the unit or, to further improve comfort level, closer to the target area at the wired remote control.  This feature must be set during commissioning by the technicians.

*Temperature-sensor on indoor unit must be used when the air conditioner is controlled from another room.

**Wireless remote controller does not have a temperature-sensor.

7

Setpoint auto reset

Even if the set temperature is changed, it returns to the preset temperature after apreset period of time.

- Period selectable from 30min/60min/90min/120min.

8

Setpoint range set

- Saves energy by limiting the min. and max. set temperature.

- Avoids excessive heating or cooling.

- This function is convenient when the remote controller is installed at a place where any number of  people may operate it.

9

Weekly schedule

- 5 actions per day can be scheduled for each day   of the week.

- The holiday function will disable schedule timer   for the days that have been set as holiday.

- 3 independent schedules can be set.   (e.g. summer, winter, mid-season)

10

Hẹn giờ tắt (Đã lập trình

sẵn)

Sets and saves setting for an increment of time that automatically turns off air conditioner after a preset period of time for each time operation starts.

11

Off timer (programmed)

Operation starts when the preset time of the ON timer elapses and stops when the preset time of the OFF timer elapses.

12

Anti-bacterial air filter

The Air filter has a anti-bacterial treatment to help prevent the growth of bacteria and mould on it.

13

Drain pump mechanism

Steeper gradient realises more efficient condensate drainage. High-lift is especially useful forlong lengths of drain piping.

14

Pre charged for up to 15 metres

If refrigerant piping length does not exceed 15 m, there is no need for on-site gas charging.

RNQ09-26M : 10 m

*Applicable to RNQ30-48M: 15 m

15

Long-life filter

Maintenance is not required for one year.

The filter is washable and can be reused.

16

Filter sign

The filter sign warns you when it is time to clean the filter.

*When using a wired remote controller the sign is displayed in the LCD.

When using a wireless remote controller the filter sign lamp illuminates on the signal receiver unit.

17

Ceiling soiling prevention function

Daikin's innovative air discharge mechanism keeps airflow away from the ceiling. Ceiling cleaning is less frequently required.

18

Auto restart

If there is a power outage while the equipment is operating, operations will restart in the same mode as before the power cut when electricity is restored.

19

Control by 2 remote controllers

Using 2 remote controllers you can operate the equipment locally or from a remote location.

Note: When a wireless remote controller is used, remote control by two remote controllers is not possible.

20

Group control by 1 remote controller

You can turn up to 16 indoor units on/off with a single remote controller. (When using connected indoor units, the settings must all be the same and on/off will be simultaneous.)

21

External command control

Operation and surveillance is carried out using the contac signal from the operation control box in the building surveillance (security) room.

*An option is required.

22

Central remote control

Optional central remote controller enables centralised control of up to 1024 indoor units (64 groups) from up to 1 kilometer away.

23

Interlock control

Enables interlocking control with external equipment such as Heat Reclaim Ventilator.

24

DIII-NET communication standard

Standardly equipped interface enables connection to centralised control system without need of an adaptor.

25

Anti corrosion treated heat exchangers ( Option)

To achieve increased durability by improved resistance to salt corrosion and atmospheric pollution, coated Anti corrosion treated heat exchangers (with special acryl pretreatment) are used for the heat exchanger of the outdoor unit. In high corrosive areas, regular maintenance needs to be carried out

26

High-efficiencyfilter unit ( Option)

Two types are available: 65% and 90% colorimetry.

27

Ultra long-life filter ( Option)

Requires no maintenance for about 4 years* (10,000h) in stores and offices. *For dust concentration of 0.15 mg/m3

28

Fresh-air intake kit

You can provide air-conditioning with fresh air from outside. Convenient for places where a ventilation fan cannot be installed.

Note:

*Connecting ducts, insect nets, fire dampers, air filters, and other parts should, as required, be procured locally.

**Outside Air fan interlocked with air conditioning unit is necessary. Optional PCB(KRP1C63)is required for interlocking.

***It is recommended that the volume of outdoor air introduced through the kit is limited to 10% of the maximum airflow rate of the indoor unit. Introducing higher quantities will increase the operating noise and may also influence temperature sending.
