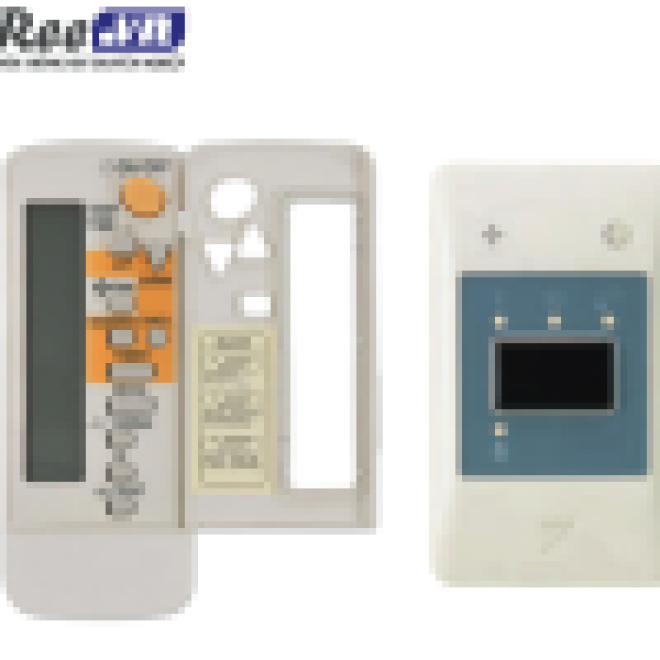

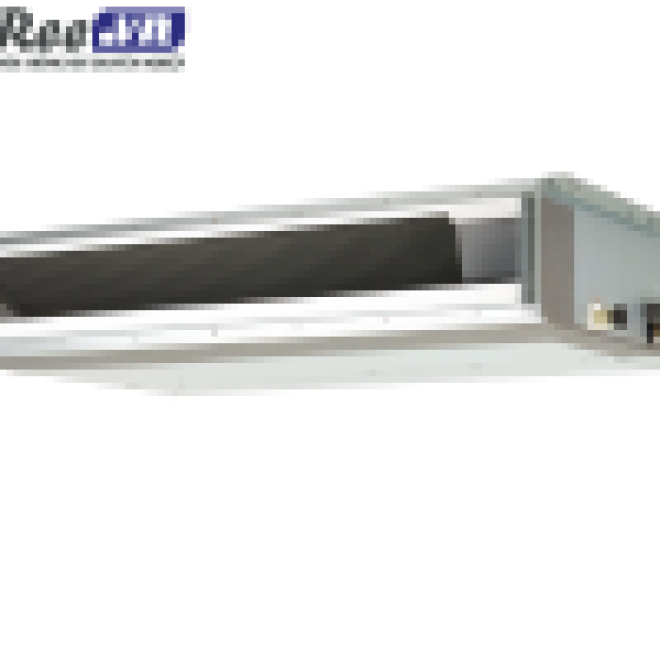

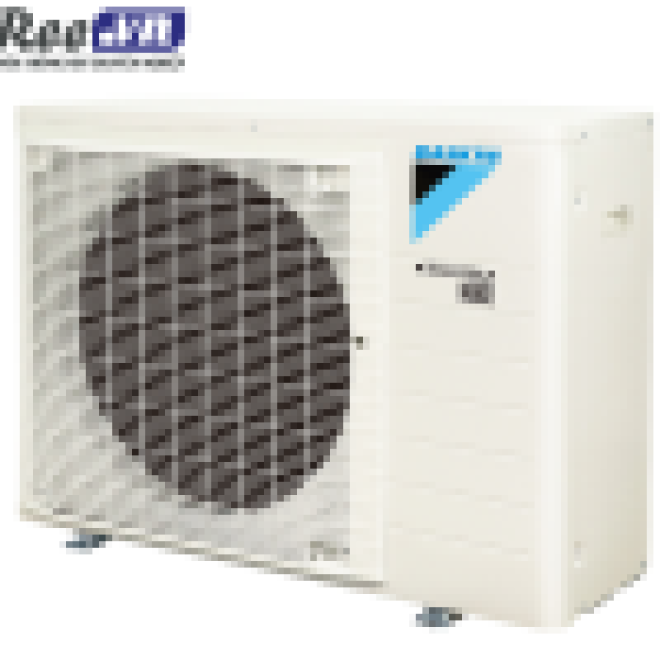

Duct connection - Inverter 3.5HP - FDLF85DV1/RZFC85EY1 + BRC4C66 (3pha, remote không dây, không bơm nước)

ITEMS

FUNCTIONS

DESCRIPTIONS

1

Switchable fan speed

(2 step)

Switchable fan speed: High/Low

High setting provides maximum reach while low

setting minimises drafts.

2

Programme "Dry"

Dehumidification is microprocessor controlled to prevent abrupt and uncomfortable changes in air temperature.

3

Off timer (programmed)

Operation starts when the preset time of the ON timer elapses and stops when the preset time of the OFF timer elapses.

4

Pre charged for up to 15 metres

If refrigerant piping length does not exceed 15 m, there is no need for on-site gas charging.

RNQ09-26M : 10 m

*Applicable to RNQ30-48M: 15 m

5

Auto restart

If there is a power outage while the equipment is operating, operations will restart in the same mode as before the power cut when electricity is restored.

6

Fresh-air intake kit

You can provide air-conditioning with fresh air from outside. Convenient for places where a ventilation fan cannot be installed.

Note:

*Connecting ducts, insect nets, fire dampers, air filters, and other parts should, as required, be procured locally.

**Outside Air fan interlocked with air conditioning unit is necessary. Optional PCB(KRP1C63)is required for interlocking.

***It is recommended that the volume of outdoor air introduced through the kit is limited to 10% of the maximum airflow rate of the indoor unit. Introducing higher quantities will increase the operating noise and may also influence temperature sending.
